Workshop Press: 25 Ton C Frame Press For Sale

Home
Power Team Shop Presses 25 Tonne C Frame

PJM Industrial are proud to be distributors of the SPX Power Team range of Workshop Presses & other products and can source any of the Power Team products.

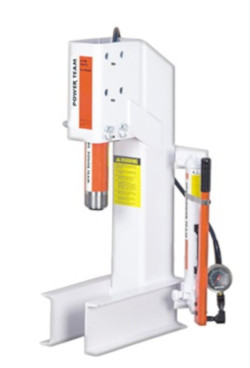

25 Tonne C Frame Shop Press Features

  • Can be bench mounted or mounted on an optional pedestal base.
  • The bench mount requires less than 1.5 sq. feet (1.4 sq. metre) of space; on optional pedestal, only 4 sq. feet (4 sq. meter) of floor space is needed.
  • The Open Throat® design makes loading and unloading of work easy.
  • The cylinder head adjusts to three convenient working positions, providing up to 20 1/4″ (514 mm) of ‘daylight’.
  • Hydraulic cylinder delivers a 6 1/4″ (159 mm) stroke and is driven by a P59 two-speed hand pump.
Workshop Press 25 Ton C Frame Press For Sale. Workshop Press, C Frame Press.

25 Ton C Frame Press Accessories

The SPX Power Team 25 ton C frame work shop press accessories available include: Simply click on a link above for a PDF with more information about the specific accessory.

25 Ton C Frame Workshop Press Technical Data

Order Number
Capacity (Tons)
Type of Cylinder Used
Stroke (mm)
Cylinder Model
Speed-Advance (mm./min.) †
Speed-Pressing (mm./min.) †
Type Pump
Pump Model ††
Weight (kg)
SPM256C ††
25
Single-Acting
159
C256C
3.3
0.8
Hand
P59
108
SPM256C ††
25
Single-Acting
159
C256C
3.3
0.8
108

† Typical performance based on pump specifications. Actual speeds may vary with operating conditions.
†† SPM256C does not include No. 60846 pedestal base.

25 Ton C Frame Work Shop Press Documents

For more information select from the following Product PDFs:

More Information?

If you require more information or have any questions regarding the 25 Ton C Frame Workshop Press from SPX Power Team, please feel free to  call us on (+61 3) 9553 4882 or 0412 720 638, send us an email at peter@pjmindustrial.com.au or use our Contact Form to submit an inquiry.
