Boerkey Roller Skate Express - The Super Robusts (Models ZAM-H, ZAM-H-50CrV4, ZAS-H and ZAS-H-50CrV4)
Boerkey GmbH, D-58089 Hagen, has been a producer of Roller Skates Express and Heavy Duty Wheels since 1951. PJM Industrial are distributors of the Boerkey Roller Skates in Australia.
Range of application:
- For longer distances andrepeat journeys with permanent loads.
- On suitable tracks, crane rails or steel beams.
- For exterme load bearing points.
- Suitable for limited space
- Often used for bridge construction or for mobile equipment to support hydraulic values,
- Use as a convevor, when the load is moving and the Roller Skates are fixed
- Triple RollerSkates or Multiple Roller Skates on request.

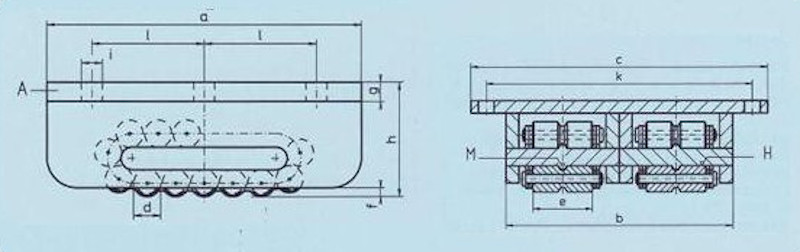

Roller Skate Express - The Super Robusts (Models ZAM-H and ZAM-H-50CrV4)
| Model | a | b | c | 0d | e | f | g | h | 0i | k | l | Rollers Under Stress | Number of Rollers | Maximum Load kN | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | 210 | 200 | 280 | 18 | 51 | 6 | 13 | 76 | 14 | 245 | 75 | 2 x 5 | 2 x 15 | 250 | 16.0 |
| II | 220 | 226 | 305 | 24 | 60 | 10 | 14 | 87 | 14 | 270 | 80 | 2 x 4 | 2 x 13 | 340 | 22.0 |
| III | 270 | 260 | 340 | 30 | 68 | 10 | 14 | 104 | 18 | 305 | 95 | 2 x 4 | 2 x 13 | 660 | 35.0 |
| IIIv | 320 | 280 | 360 | 30 | 68 | 10 | 18 | 115 | 18 | 325 | 120 | 2 x 6 | 2 x 17 | 840 | 55.5 |
| IV | 380 | 336 | 440 | 42 | 76 | 19 | 19 | 145 | 22 | 390 | 150 | 2 x 4 | 2 x 13 | 1060 | 92.5 |
| V | 530 | 364 | 480 | 50 | 86 | 19 | 19 | 165 | 22 | 430 | 210 | 2 x 6 | 2 x 17 | 1380 | 168.0 |
| VL | 580 | 364 | 480 | 50 | 86 | 19 | 23 | 170 | 26 | 430 | 250 | 2 x 8 | 2 x 21 | 1760 | 197.0 |
| Vv | 650 | 410 | 560 | 50 | 100 | 20 | 28 | 190 | 26 | 490 | 240 | 2 x 9 | 2 x 23 | 2500 | 294.0 |
| VI | 900 | 410 | 590 | 50 | 100 | 20 | 38 | 200 | 33 | 500 | 360 | 2 x 13 | 2 x 31 | 3300 | 432.0 |

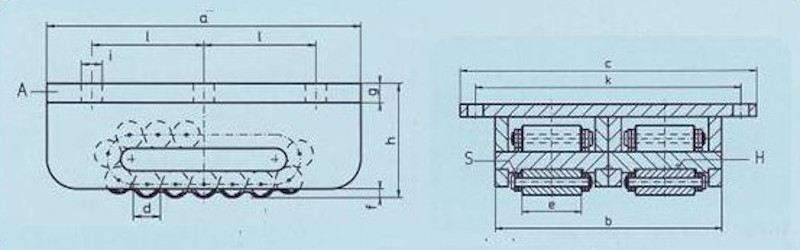

Roller Skate Express - The Super Robusts (Models ZAS-H and ZAS-H-50CrV4)
Model ZAS-H (H= Hardened and machined centre plate), ZAS-H-50CrV4 (Roller material 50CrV4)
| Model | a | b | c | 0d | e | f | g | h | 0i | k | l | Rollers Under Stress | Number of Rollers | Maximum Load kN | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| III | 270 | 260 | 340 | 30 | 68 | 10 | 14 | 104 | 18 | 305 | 95 | 2 x 4 | 2 x 13 | 800 | 36.2 |
| IIIv | 320 | 280 | 360 | 30 | 68 | 10 | 18 | 115 | 18 | 325 | 120 | 2 x 6 | 2 x 17 | 1000 | 57.5 |
| IV | 380 | 336 | 440 | 42 | 76 | 19 | 19 | 145 | 22 | 390 | 150 | 2 x 4 | 2 x 13 | 1300 | 96.0 |
| V | 530 | 364 | 480 | 50 | 86 | 19 | 19 | 165 | 22 | 430 | 210 | 2 x 6 | 2 x 17 | 1700 | 175.0 |
| VL | 580 | 364 | 480 | 50 | 86 | 19 | 23 | 170 | 26 | 430 | 250 | 2 x 8 | 2 x 21 | 2000 | 207.0 |
| Vv | 650 | 410 | 560 | 50 | 100 | 20 | 28 | 190 | 26 | 490 | 240 | 2 x 9 | 2 x 23 | 3000 | 305.0 |
| VI | 900 | 410 | 590 | 50 | 100 | 20 | 38 | 200 | 33 | 500 | 360 | 2 x 13 | 2 x 31 | 4000 | 485.0 |
For more information, select the following product pdf:
Boerkey Roller Skate Express The Super Robusts (Models ZAM-H, ZAM-H-50CrV4, ZAS-H and ZAS-H-50CrV4) PDF (132 KB)
