Lateral Guide Roller For Sale. Boerkey Roller Skate Accessory.
We can provide Lateral guide rollers for use with cranes or on steel beams. These can be custom made to suit your specific requirements.
Boerkey GmbH, D-58089 Hagen, has been a producer of Roller Skates Express and Heavy Duty Wheels since 1951. PJM Industrial are distributors of the Boerkey Roller Skates in Australia.
Range of roller guide application:
- For longer distances and repeat journeys with permanent loads.
- On suitable tracks such crane rails or steel beams.
- For numbers and arrangement of the guide rollers see the following:
Boerkey Lateral Guide Roller Model A-H-FR, AS-H-FR, AM-H-FR (Roller Dimensions)Characteristics of the Guide Rollers Model FR
- Robust, almost maintenance free
- Welded construction able to maintain a defined direction
- Made to measure according to customers requirements and/or the specific track
- Minimum specification for Skates: hardened centreplate.

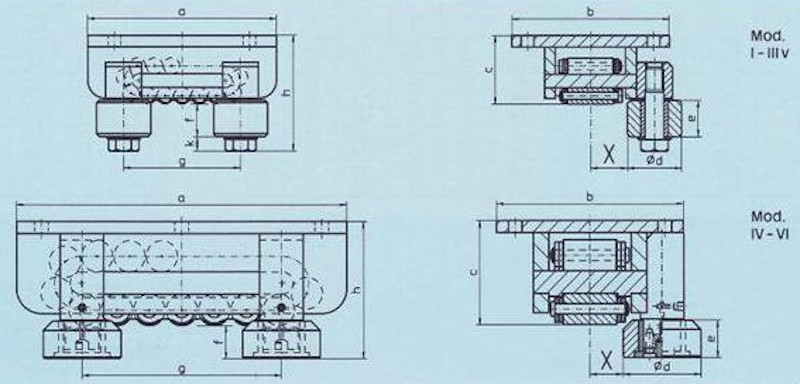

Roller Guide Model A-H-FR-, AS-H-FR-, AM-H-FR
| Model | a | b | c | 0d | e | f | g | h | k | X min. | X max. | Admissable Radial Force per Guide Roller |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I | 270 | 175 | 76 | 60 | 40 | 36 | 130 | 128 | 16 | 35 | 80 | 10 |
| II | 220 | 190 | 87 | 60 | 40 | 32 | 140 | 135 | 16 | 42 | 90 | 10 |
| III | 270 | 210 | 104 | 60 | 40 | 32 | 180 | 152 | 16 | 55 | 115 | 10 |
| IIIv | 320 | 220 | 115 | 60 | 40 | 32 | 230 | 163 | 16 | 55 | 115 | 10 |
| IV | 380 | 270 | 145 | 125 | 60 | 50 | 160 | 195 | - | 45 | 150 | 100 |
| V | 530 | 300 | 165 | 125 | 60 | 50 | 280 | 215 | - | 50 | 160 | 100 |
| VL | 580 | 300 | 170 | 125 | 60 | 50 | 340 | 220 | - | 50 | 160 | 100 |
| Vv | 650 | 350 | 190 | 170 | 60 | 50 | 340 | 240 | - | 50 | 170 | 150 |
| VI | 900 | 380 | 200 | 170 | 60 | 50 | 550 | 250 | - | 50 | 170 | 150 |
For more information, select from the following product pdfs:
Boerkey Lateral Guide Roller Model A-H-FR, AS-H-FR, AM-H-FR (Roller Dimensions) (136 KB)- Boerkey Lateral Guide Roller Model A-H-FR, AS-H-FR, AM-H-FR (Roller Arrangement) (95 KB)
