Single Acting Spring Return Hydraulic Cylinder Jacks: Werner Weitner
- Multipurpose use
- Single acting
- Working pressure 700 bar max.
- Application in all mounting positions
- High-performance spring return
- Wiper ring prevents pollution and corrosion
- Hard-crome plated plunger with end stop
Single acting hydraulic cylinder jacks with spring return steel cylinders have a hard chromium plated piston that prevents gauge formation and corrosion. These hydraulic cylinders have a male thread on the cylinder head and a female thread on the piston rod.
WW-EWZ Series Single Acting Spring Return Jacks Data
| TYPE | CAPACITY (ton) | CAPACITY (kN) | STROKE (mm) | AREA (cm2) | Oil Cap. (cm2) | Height (mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| EWZ-010-050 | 10 | 110 | 50 | 15.9 | 80 | 140 | 2.7 |
| EWZ-010-100 | 10 | 110 | 100 | 15.9 | 160 | 190 | 3.5 |
| EWZ-010-150 | 10 | 110 | 150 | 15.9 | 240 | 250 | 5 |
| EWZ-025-050 | 25 | 231 | 50 | 33.2 | 165 | 166 | 5.9 |
| EWZ-025-100 | 25 | 231 | 100 | 33.2 | 330 | 262 | 9.5 |
| EWZ-025-150 | 25 | 231 | 150 | 33.2 | 500 | 267 | 10.5 |
| EWZ-040-175 | 40 | 443 | 175 | 63.6 | 1,120 | 290 | 19 |
| EWZ-080-150 | 80 | 788 | 150 | 113.1 | 1,700 | 285 | 28 |

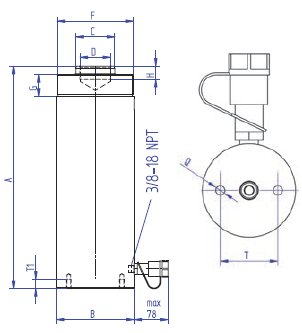

WW-EWZ Series Single Acting Spring Return Jacks Sizes (mm)
| TYPE | B | D | C | F | T | T1 | Q | G |
|---|---|---|---|---|---|---|---|---|
| EWZ-010-050 | 60 | M25 x 1.5 | 40 | 2 1/4" - 14 | 32 | 9 | M6 | 28 |
| EWZ-010-100 | 60 | M25 x 1.5 | 40 | 2 1/4" - 14 | 32 | 9 | M6 | 28 |
| EWZ-010-150 | 60 | M25 x 1.5 | 40 | 2 1/4" - 14 | 32 | 9 | M6 | 28 |
| EWZ-025-050 | 85 | 1 1/2" 16 | 55 | 3 5/16" - 12 | 52.5 | 10 | M10 | 50 |
| EWZ-025-100 | 85 | 1 1/2" 16 | 55 | 3 5/16" - 12 | 52.5 | 10 | M10 | 50 |
| EWZ-025-150 | 85 | 1 1/2" 16 | 55 | 3 5/16" - 12 | 52.5 | 10 | M10 | 50 |
| EWZ-040-175 | 114 | M36 x 3 | 70 | M114 x 2 | / | / | / | 50 |
| EWZ-080-150 | 146 | 2 x M6 | 95 | 5 3/4" - 12 | / | / | / | 52 |
For more information, select the following product pdf:
Werner Weitner Single Acting Jacks with Spring Return PDF (127 KB)
