Single Acting Lock Nut Hydraulic Cylinder Jacks: Werner Weitner

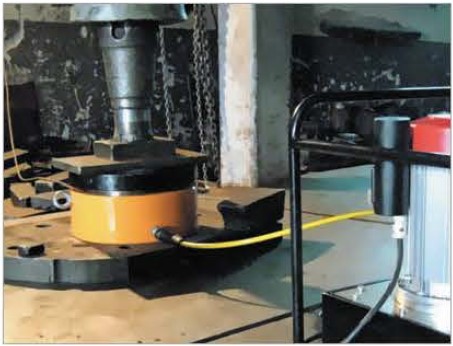

This single acting hydraulic cylinder jack with lock nut is suitable for all heavy duty applications. Hard Chrome plated piston rod. Interchangeable hardened saddle. Manufactured from high strength alloy steel.

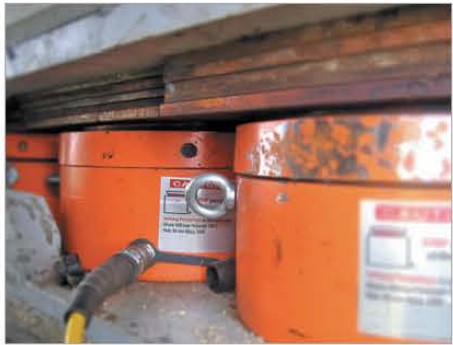

Single acting load return hydraulic cylinders with lock nuts are designed to support loads mechanically. They can be used for a supporting foundation such as required in bridge construction, buildings and ship building, etc. Loads are fully held mechanically for long periods of time due to the lock nut.

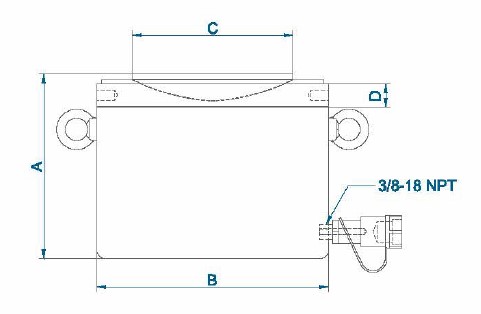

Single Acting Hydraulic Cylinder Jack with Lock Nut Tech Data
| TYPE | CAPACITY (ton) | CAPACITY (kN) | STROKE (mm) | AREA (cm2) | Oil Cap. (cm2) | Closed Height (mm) | Outer Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SM-22Q-050 | 220 | 2,156 | 50 | 314 | 1,570 | 193 | 265 | 78 |
| SL-220-100 | 220 | 2,156 | 100 | 314 | 3,140 | 253 | 265 | 104 |
| SM-220-150 | 220 | 2,156 | 150 | 314 | 4,710 | 318 | 265 | 132 |
| SM-350-050 | 350 | 3,369 | 50 | 490 | 2,453.2 | 205 | 330 | 127 |
| SM-350-100 | 350 | 3,369 | 100 | 490 | 4,906.3 | 265 | 330 | 167 |
| SM-350-150 | 350 | 3,369 | 150 | 490 | 7,359.5 | 335 | 330 | 214 |
| SM-500-050 | 500 | 4,851 | 50 | 706.5 | 3,532.5 | 240 | 400 | 225 |
| SL-500-100 | 500 | 4,851 | 100 | 706.5 | 7,065 | 310 | 400 | 294 |
| SL-500-150 | 500 | 4,851 | 150 | 706.5 | 10,597.5 | 385 | 400 | 368 |
| SM-710-050 | 710 | 6,986 | 50 | 1,017.36 | 5,086.8 | 265 | 490 | 375 |
| SM-710-100 | 710 | 6,986 | 100 | 1,017.36 | 10,173.6 | 340 | 490 | 486 |
| SM-710-150 | 710 | 6,986 | 150 | 1,017.36 | 15,260.5 | 425 | 490 | 612 |
| SM-1110-050 | 1,100 | 10.916 | 50 | 1,589.625 | 7,948.2 | 290 | 590 | 590 |
| SM-1110-100 | 1,100 | 10.916 | 100 | 1,589.625 | 15,896.3 | 375 | 590 | 772 |
| SM-1110-150 | 1,100 | 10.916 | 150 | 1,589.625 | 23,844.5 | 470 | 590 | 976 |
For more information, select the following product pdf:
Single Acting Hydraulic Cylinder Jacks with Lock Nut PDF (422 KB)
