Low Profile Hydraulic Cylinder Jacks: Werner Weitner 700 Bar
PJM Industrial supply a range of Werner Weitner low profile jacks or low profile hydraulic cylinder jacks. See below for more information.
- Single acting
- Especially suitable for limited space
- High performance at low profile
- Spring or load return
The flat cylinders of this series of low profile hydraulic cylinders jacks are made of high-strength special steel with hardened piston surfaces. All our low profile hydraulic cylinder jacks are suitable for frequent use and available with load or spring return. The compact and flat design of these low profile cylinders or low profile hydraulic cylinder jacks allows applications where space is limited.
WW-FZ Series Low Profile Cylinder Jacks Specifications
| TYPE | CAPACITY (ton) | CAPACITY (kN) | STROKE (mm) | SPRING RETURN | AREA (cm2) | Oil Cap. (cm2) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| FZ-010-10 | 10 | 110 | Yes | 10 | 15.9 | 16 | 43 | 1.3 |
| FZ-020-06 | 20 | 194 | No | 6 | 28.27 | 17 | 31 | 1.5 |
| FZ-020-10 | 20 | 194 | Yes | 10 | 28.27 | 28.5 | 53 | 2.5 |

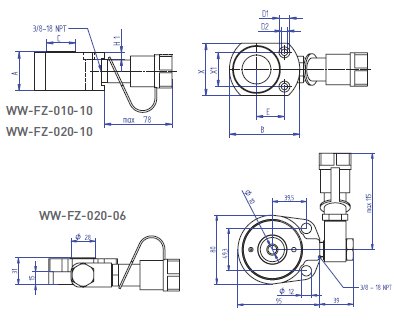

WW-FZ Series Low Profile Cylinder Jacks Sizes (mm)
| TYPE | X | X1 | B | C | E | D1 | D2 |
|---|---|---|---|---|---|---|---|
| FZ-010-10 | 58 | 37 | 78 | 35 | 34 | 12 | 7 |
| FZ-020-06 | 80 | 49 | 95 | 28 | 39.5 | 16 | 12 |
| FZ-020-10 | 77 | 49 | 102 | 28 | 39.5 | 16 | 12 |
For more information, select the following product pdf:
Werner Weitner Low Profile Hydraulic Cylinder Jacks (140 KB)
