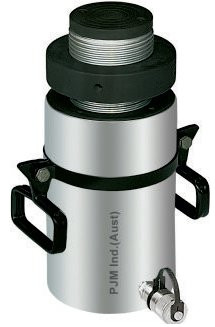

PJM Industrial Threaded Ram With Lock Nut Single Acting Hydraulic Jacks
Single Acting Hydraulic Jacks Features
- Capacity 10 – 1000 ton
- Stroke 150 mm
- Max. Working Pressure 700 bar.
Single Acting Hydraulic Jacks Applications
- Suited for applications requiring sustained load holding such as concrete pile testing bridge support work in construction industries.
- Multipurpose application for maintenance in industries such as steel, cement and power plants.
PST Series Single Acting Threaded Ram Hydraulic Jack Specifications
P = PJM Industrial, S = Single Acting Spring Return, T = Threaded Ram

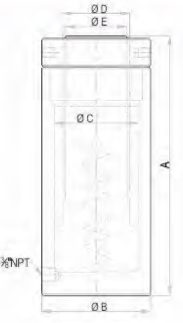

| Cylinder Capacity (ton) | Stroke (mm) | Model | Effecive Area (cm2) | Oil Cap. (ton) | Closed Height (mm) | Cylinder OD (mm) | Bore Dia. (mm) | Ram Dia. (mm) | A/F (mm) | Wt. Approx. (kg) | Suitable Pumps |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 150 | PST 10-150 | 15.9 | 239 | 250 | 60 | 45 | 40 | 34 | 4.3 | PHP-1P4-2-1.8 |
| 15 | 150 | PST 15-150 | 23.8 | 357 | 260 | 70 | 55 | 45 | 40 | 5.7 | PHP-1P4-2-1.8 |
| 20 | 150 | PST 20-150 | 31.2 | 468 | 270 | 80 | 63 | 55 | 48 | 8.7 | PHP-1P4-2-1.8 |
| 25 | 150 | PST 25-150 | 38.5 | 578 | 285 | 90 | 70 | 55 | 49 | 11 | PHP-1P4-2-1.8 |
| 30 | 150 | PST 30-150 | 44.2 | 663 | 295 | 100 | 75 | 60 | 54 | 14.5 | PHP-1P4-2-2.2 |
| 50 | 150 | PST 50-150 | 78.5 | 1178 | 310 | 130 | 100 | 80 | 73 | 26.3 | PHP-2P4-2-5 |
| 75 | 150 | PST 75-150 | 113.1 | 1697 | 320 | 155 | 120 | 95 | 87 | 38 | PHP-2P4-2-5 |
| 100 | 150 | PST 100-150 | 153.9 | 2309 | 350 | 175 | 140 | 110 | 101 | 55.6 | PHP-2P4-2-5 |
| 150 | 150 | PST 150-150 | 227.0 | 3405 | 365 | 220 | 170 | 140 | 132 | 93.5 | PHP-2P4-2-8 |
| 200 | 150 | PST 200-150 | 314.2 | 4713 | 380 | 255 | 200 | 160 | 150 | 130 | PPU-3-40-HS |
| 250 | 150 | PST 250-150 | 380.1 | 5702 | 395 | 280 | 220 | 180 | 170 | 164 | PPU-3-40-HS |
| 300 | 150 | PST 300-150 | 452.4 | 6786 | 410 | 310 | 240 | 200 | 188 | 209 | PPU-3-40-HS |
| 400 | 150 | PST 400-150 | 572.6 | 8589 | 450 | 350 | 270 | 220 | 205 | 291 | PPU-3-40-HS |
| 500 | 150 | PST 500-150 | 706.9 | 10604 | 475 | 400 | 300 | 250 | 235 | 410 | PPU-3-40-HS |
PLT Series Single Acting Threaded Ram Hydraulic Jack Specifications
P = PJM Industrial, L = Single Acting Load Return, T = Threaded Ram
| Cylinder Capacity (ton) | Stroke (mm) | Model | Effecive Area (cm2) | Oil Cap. (ton) | Closed Height (mm) | Cylinder OD (mm) | Bore Dia. (mm) | Ram Dia. (mm) | A/F (mm) | Wt. Approx. (kg) | Suitable Pumps |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 | 150 | PLT 600-150 | 855.3 | 12830 | 500 | 430 | 330 | 275 | 263 | 550 | PPU-5-50-HS |
| 800 | 150 | PLT 800-150 | 1134 | 17012 | 535 | 505 | 380 | 310 | 298 | 685 | PPU-5-50-HS |
| 1000 | 150 | PLT 1000-150 | 1418.6 | 21280 | 575 | 560 | 425 | 350 | 338 | 1060 | PPU-5-50-HS |
Higher capacity and customized solutions on request. Specifications are subject to change due to continual improvement.
For more information please select the following Product PDF:
PJM Industrial Threaded Ram With Lock Nut Single Acting Hydraulic Jacks (2061 KB)
