Low Profile Jacks / Low Height Hydraulic Jacks For Sale
Low Height Jacks Features
- Capacity 10 – 200 ton
- Stroke 30 – 60 mm
- Max. Working Pressure 700 bar.
Applications
- Low profile design for use in confined area.
- Used in Power and Steel Plants, Ship building / Ship repair and Construction.
Caution – Provide a level and solid support for entire jack base area since the ram guide length is small.

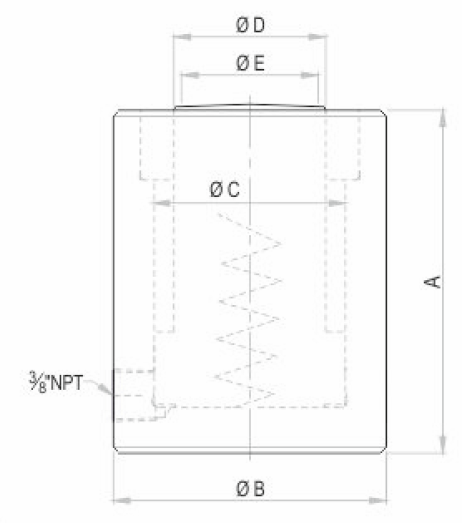

PSL Series Low Profile Hydraulic Jack Specifications
| Cylinder Capacity (ton) | Stroke (mm) | Model | Effecive Area (cm2) | Oil Cap. (ton) | Closed Height (mm) | Cylinder OD (mm) | Bore Dia. (mm) | Ram Dia. (mm) | A/F (mm) | Wt. Approx. (kg) | Suitable Pumps |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 30 | PSL 10-30 | 15.9 | 48 | 90 | 70 | 45 | 35 | - | 2.3 | PHP-1P4-2-1.8 |
| 20 | 50 | PSL 20-50 | 31.2 | 156 | 115 | 90 | 63 | 50 | - | 4.8 | PHP-1P4-2-1.8 |
| 30 | 50 | PSL 30-50 | 44.2 | 221 | 120 | 100 | 75 | 60 | - | 6 | PHP-1P4-2-1.8 |
| 50 | 60 | PSL 50-60 | 78.5 | 471 | 125 | 130 | 100 | 80 | 60 | 11.1 | PHP-1P4-2-1.8 |
| 75 | 60 | PSL 75-60 | 113.1 | 679 | 145 | 155 | 120 | 95 | 70 | 18.2 | PHP-2P4-2-5 |
| 100 | 60 | PSL 100-60 | 153.9 | 923 | 150 | 175 | 140 | 110 | 80 | 23.4 | PHP-2P4-2-5 |
| 150 | 60 | PSL 150-60 | 227.0 | 1362 | 175 | 220 | 170 | 140 | 100 | 34.9 | PHP-2P4-2-5 |
| 200 | 60 | PSL 200-60 | 314.2 | 1885 | 200 | 255 | 200 | 160 | 110 | 62.1 | PHP-2P4-2-5 |
P = PJM Industrial, S = Single Acting Spring Return, L = Low Height
Higher capacity and customized solutions on request. Specifications are subject to change due to continual improvement.
For more information please select the from the following Product PDFs:
PJM Industrial Flat Jacks Single Acting Spring Return (1919 KB) PJM Industrial Low Height Jacks Plain Ram Single Acting Spring Return (1910 KB)
