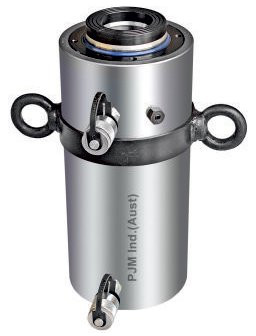

PJM Industrial Hollow Ram Plain Ram Double Acting Hydraulic Jacks For Sale
Double Acting Hydraulic Jacks Features
- Capacity 10 – 100 ton
- Stroke 50 – 150 mm
- Max. Working Pressure 700 bar.
Applications
- As hydraulic pullers with mechanical accessories for removing and assembling bearing bushes, pins, cylinder liners, pulling tubes of heat exchangers, gears and flanges of machinery.
- Used as bar / pre-stressing jacks in construction industries
PDH Series Hollow Ram Plain Ram Double Acting Hydraulic Jacks Specifications
P = PJM Industrial, D = Double Acting Oil Return, H = Hollow Ram
| Cylinder Capacity (ton) | Stroke (mm) | Model | Effecive Area (cm2) | Oil Cap. (ton) | Closed Height (mm) | Cylinder OD (mm) | Bore Dia. (mm) | C'Hole Dia. (mm) | Ram Dia. (mm) | A/F (mm) | Wt. Approx. (kg) | Suitable Pumps |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 75 | PDH 10-75 | 14.7 | 110 | 210 | 75 | 50 | 20 | 40 | 28 | 4.7 | PHP-2P4-2-5-E |
| 10 | 100 | PDH 10-100 | 14.7 | 147 | 235 | 75 | 50 | 20 | 40 | 28 | 5.5 | PHP-2P4-2-5-E |
| 20 | 50 | PDH 20-50 | 28.9 | 144 | 195 | 100 | 70 | 27 | 60 | 58 | 10.2 | PHP-2P4-2-5-E |
| 20 | 100 | PDH 20-100 | 28.9 | 288 | 245 | 100 | 70 | 27 | 60 | 58 | 11.4 | PHP-2P4-2-5-E |
| 20 | 150 | PDH 20-150 | 28.9 | 433 | 295 | 100 | 70 | 27 | 60 | 58 | 12.7 | PHP-2P4-2-5-E |
| 30 | 50 | PDH 30-50 | 44.2 | 221 | 210 | 115 | 85 | 33 | 70 | 67 | 15 | PHP-2P4-2-5-E |
| 30 | 100 | PDH 30-100 | 44.2 | 422 | 260 | 115 | 85 | 33 | 70 | 67 | 18 | PHP-2P4-2-5-E |
| 30 | 150 | PDH 30-150 | 44.2 | 663 | 310 | 115 | 85 | 33 | 70 | 67 | 21 | PHP-2P4-2-5-E |
| 50 | 100 | PDH 50-100 | 75.4 | 754 | 270 | 140 | 110 | 42 | 90 | 87 | 26 | PHP-2P4-2-5-E |
| 60 | 75 | PDH 60-75 | 91.6 | 686 | 260 | 155 | 125 | 54 | 100 | 97 | 30 | PHP-2P4-2-5-E |
| 60 | 100 | PDH 60-100 | 91.6 | 916 | 285 | 155 | 125 | 54 | 100 | 97 | 32 | PHP-2P4-2-5-E |
| 60 | 150 | PDH 60-150 | 91.6 | 1373 | 335 | 155 | 125 | 54 | 100 | 97 | 36 | PHP-2P4-2-5-E |
| 100 | 75 | PDH 100-75 | 150.2 | 1126 | 290 | 200 | 165 | 77 | 130 | 126 | 52 | PHP-2P4-2-5-E |
| 100 | 100 | PDH 100-100 | 150.2 | 1502 | 315 | 200 | 165 | 77 | 130 | 126 | 56 | PHP-2P4-2-5-E |
Higher capacity and customized solutions on request. Specifications are subject to change due to continual improvement.
For more information please select the following Product PDF:
PJM Industrial General Purpose Jacks Plain Ram, Double Acting, Oil Return (1920 KB)
